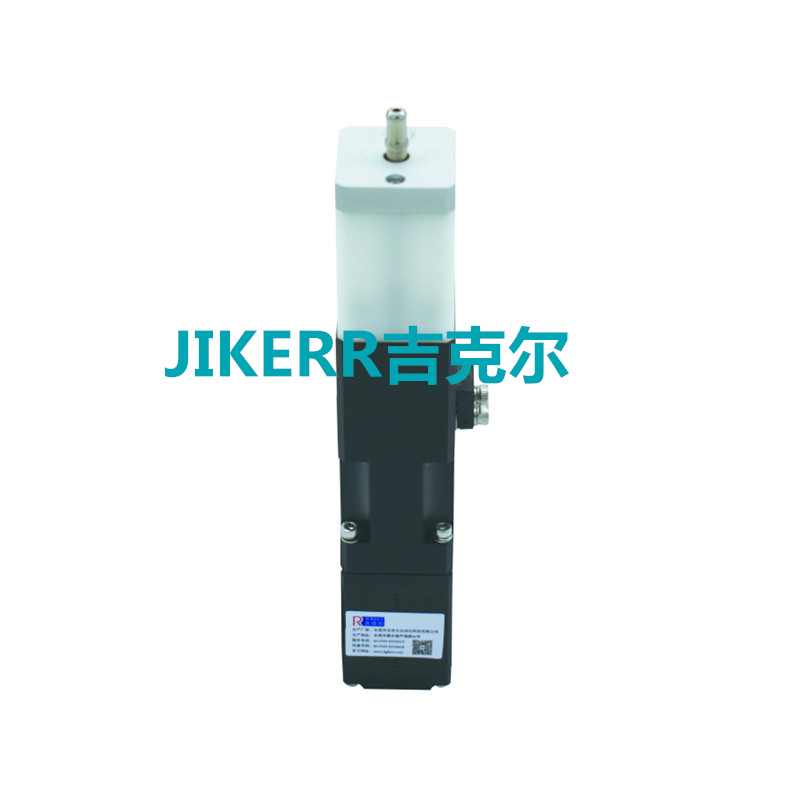

Ceramic plunger pipette pump series
Home > Product center > Ceramic plunger pipette pump series
Product center > Ceramic plunger pipette pump series
Liquid metering pump series
Product performance：
l Precision ceramic piston cavity structure is used.
l Non-contact suction and withdrawal are adopted, without cross contamination.
lRecreciprocating suction and push fluid of precision screw motor
l Small volume, high precision, corrosion resistance, wear resistance, air tightness, and reliable consistency.
l No dynamic seals, no vulnerable parts, zero maintenance and maintenance cost.
l Sucsuction is useful for universal live connection, can be suitable for a variety of specifications.
Telephone：0769-83328418
Message feedbackPrevious：Ceramic syringe
Detailed introduction
Widely used for： raw preparations, pharmaceutical, chemical, liquid workstation suction, liquid withdrawal and other precision quantitative packaging.
Product performance：
l Precision ceramic piston cavity structure is used.
l Non-contact suction and withdrawal are adopted, without cross contamination.
lRecreciprocating suction and push fluid of precision screw motor
l Small volume, high precision, corrosion resistance, wear resistance, air tightness, and reliable consistency.
l No dynamic seals, no vulnerable parts, zero maintenance and maintenance cost.
l Sucsuction is useful for universal live connection, can be suitable for a variety of specifications.
Technical Parameters
Specification and Model | JKR-YYB-A50UL | JKR-YYB-A100UL | JKR-YYB-A300UL | JKR-YYB-A500UL |
Measurement e | 50μL | 100μL | 250μL | 500μL |
Piston material | Alumina / Zirconia | |||
Drive mode | Four-wire precision wire rod stepping motor | |||
Motor rotation speed | 1-180r/min | |||
Suction and drainage accuracy（CV） Precision of suction fluid | 2.0% | |||
Flow pressure | ＜0.30Mpa | |||
Travel | Max18mm | |||
Communication interface | RS232，RS485，Only motor drive is selected ISC1000時(shí) | |||
Operating noise | <60 dBA，Indoor use only | |||
Operating temperature and humidity | 15°C to 40°C and 20% to 95% RH at 40°C, non-condensing | |||
Media humidity | 15°C to 40°C | |||
Power supply requirements | 24VDC 500mA | |||
Note: the above models are close to our large shipments of the representative model products, welcome to order customized! For the 2D,3D installation size diagram, please contact our customer, sales or website for download.
