Stainless steel pressure container series
Home > Product center > Stainless steel pressure container series
Product center > Stainless steel pressure container series

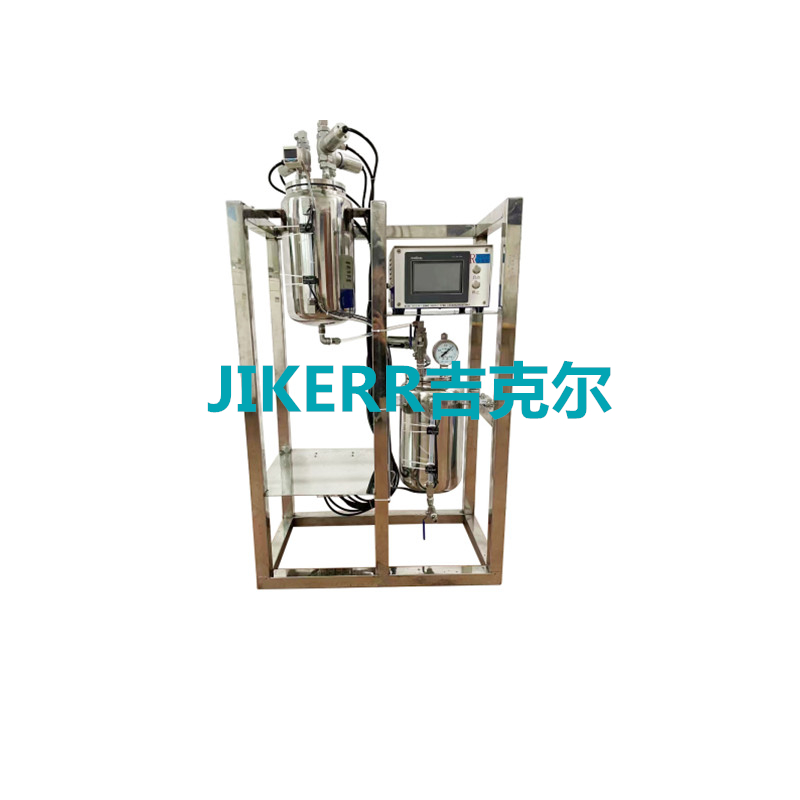

Vertical AB vacuum debubbling cache tank
l AB stainless steel tank automatic filling function.
l Functions such as automatic mixing, pumping, vacuum breaking, defoaming.
l With liquid level display, automatic sensing of upper and lower limits, automatic safety protection of excessive liquid levels.
l Completely made with stainless steel SUS304 material.
l The mixing slurry is driven by a motor with adjustable speed.
l A programmable controller is used to automatically control the liquid level and the valves.
Telephone：0769-83328418
Message feedbackPrevious：Automatic vacuum air-liquid buffer tank series
Next：no more
Detailed introduction
Application fields: suitable for turnover, transition, buffering and standing in electrolytes, water, medicines, acids, alkalis, glues, reagents and other industries.
Product Features:
l AB stainless steel tank automatic filling function.
l Functions such as automatic mixing, pumping, vacuum breaking, defoaming.
l With liquid level display, automatic sensing of upper and lower limits, automatic safety protection of excessive liquid levels.
l Completely made with stainless steel SUS304 material.
l The mixing slurry is driven by a motor with adjustable speed.
l A programmable controller is used to automatically control the liquid level and the valves.
Technical Parameters
Specification & Model | JKR-2HCG5L | JKR-2HCG10L | JKR- 2HCG15L | JKR- 2HCG20L | JKR- 2HCG50L |
Material | SUS304/316/316L | ||||
Wall thickness | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 3.0mm |
Volume of single tank | 5L | 10L | 15L | 20L | 50L |
Vacuum meter | SMC SMC-Digital display | ||||
valve | Electric / pneumatic（optional） | ||||
Mixing motor | Adjustable speed motor | ||||
Liquid inlet pipe | 8×10mm（Can be specified） | ||||
Connecting pump pipe | 6×8mm（Can be specified） | ||||
Vacuum pipe | 8×10mm（Can be specified） | ||||
Note: The above are the standard equipment of our company, you are welcome to customize them. Please indicate the number of connectors and outlets when placing the order and whether the pressure gauge is a positive pressure gauge or a negative pressure gauge.
